GREIT evaluation: Evaluation using simulation data

In order to test the performance of GREIT, we create a set of simulation data. Here we look at the performance for an object moving radially toward the side from the centre of the medium.

Algorithms to test

First, run the matlab command
>> addpath ../GREIT-algorithm
to give matlab access to the algorithms folder. Use the function

In the rest of this example, the function get_list_of_algs.m lists the provided algorithms to test.

% Algorithm list $Id: get_list_of_algs.m 1619 2008-09-22 16:32:56Z aadler $
function algs= get_list_of_algs;

algs = {'GREIT_Sheffield_backproj', ...
        'GREIT_NOSER_ndiff', ...
        'GREIT_NOSER_diff', ...
        'GREIT_test_ndiff', ...
       };

Prepare simulation data: phantom data

Here we can use either:

Tests: position, amplitude, resolution, PSF

These parameters are calculated from an image as illustrated in the following figure. The key calculation is the Half Maximum Set (HMS), which contains all pixels above half the maximum value.

Calculation of parameters for reconstructed images: Amplitude, Position Error, Resolution, Shape Deformation Ringing

Calculate Half-Maximum Set

The function calc_hm_set.m calculates the HAS from each image
function hm_img = calc_hm_set(img,frac)
% hm_img= CALC_HA_SET(img)
% hm_img is 32x32xNimg. It is 1 inside the Half Ampl Set
% frac is the fraction of maximum (0.5 or 0.25)
% hm_img expects conductive changes. Use calc_hm_set(-img,frac) for non-c

% (C) 2008 Andy Adler. Licenced under GPL v2 or v3
% $Id: calc_hm_set.m 1598 2008-07-30 10:17:24Z aadler $

[x,y]=meshgrid(linspace(-1,1,32),linspace(-1,1,32)); map = x.^2+y.^2<1.1;

hm_img = logical(zeros(size(img)));
for i=1:size(img,3);
   imi = img(:,:,i); imi= imi(map);

   hmi= logical(zeros(32));
   hmi(map) = imi >= (max(imi) * frac);
   hm_img(:,:,i) = hmi;
end

Reconstruct example images

First, we reconstruct an image using some of the proposed algorithms.
% Reconstruct some images $Id: simulation_test03.m 1621 2008-09-22 18:09:43Z aadler $
load sim_radmove_homog.mat

imb.calc_colours.ref_level = 0; % select colour output
imb.calc_colours.greylev   = 0.01; % black backgnd
bkgnd= [.1,.5,.1]; imb.calc_colours.backgnd   = bkgnd;

idx= 157; dir='simulation_test_imgs';

phi = linspace(0,2*pi,10);
xc=-xyzr_pt(1,idx) + xyzr_pt(4,idx) * sin(phi); xc= round(xc*15.5 + 16.5);
yc=-xyzr_pt(2,idx) + xyzr_pt(4,idx) * cos(phi); yc= round(yc*15.5 + 16.5);
ind= sub2ind([32,32],yc,xc);

% Use this Map for reconstruction shape
[x,y]=meshgrid(linspace(-1,1,32),linspace(-1,1,32)); out = x.^2+y.^2>1.1;

algs = get_list_of_algs;
for i= 1:length(algs)
   img = feval(algs{i}, vh, vi(:,idx) );
   hmi = calc_hm_set( img, 0.5 )+1;
   qmi = calc_hm_set( img, 0.25 )+1;

   imc= calc_colours(img, imb);
   imc(out) = 1; hmi(out) = 3; qmi(out) = 3; % background
   imc(ind) = 1; hmi(ind) = 3; qmi(ind) = 3; % target

   imwrite(imc,colormap, sprintf('%s/simulation_test03_%d.png',dir,i),'png')
   clrmap = [0,0,0;1,1,1;bkgnd];
   imwrite(hmi,clrmap, sprintf('%s/simulation_test03_h%d.png',dir,i),'png')
   imwrite(qmi,clrmap, sprintf('%s/simulation_test03_q%d.png',dir,i),'png')
end

Sheffield
Backproj
NOSER
Norm Diff
NOSER
Diff
Output
½Max
Set
¼Max
Set
Reconstructed images. The conductivity target location is shown in green (the target is a circle, but shows as a small square in this image)

Calculate parameters from images

The parameters listed previously are calculated from images using the function GREIT_sim_params.m.
function params = GREIT_sim_params(imgs, xyzr_pt)
% params = GREIT_sim_params(imgs)
%  params(1,:) = Image Amplitude
%  params(2,:) = Position Error => + toward centre, - toward edge
%  params(3,:) = Resolution
%  params(4,:) = Shape Deformation
%  params(5,:) = Ringing

% (C) 2008 Andy Adler. Licensed under GPL v2 or v3
% $Id: GREIT_sim_params.m 1590 2008-07-29 11:23:55Z aadler $

N_imgs = size(imgs,3);
for i= 1:N_imgs
   [xmean,ymean,equiv_circ,map,qmi,img] = calc_cofg(imgs(:,:,i));
   params(1,i) = calc_amplitude( img );
   params(2,i) = calc_posn_error( qmi, xmean, ymean, xyzr_pt(1:2,i) );
   params(3,i) = calc_resolution( qmi, map );
   params(4,i) = calc_shape_deform( qmi, equiv_circ );
   params(5,i) = calc_ringing( img, qmi );
end

% TODO: Fix this when we start to care about units
params(1,:) = params(1,:)/mean(params(1,1:10));

function ampl = calc_amplitude(img)
   ampl = sum(img(:));

function pe   = calc_posn_error(qmi, xmean, ymean, xy)
   pe = sqrt(sum(xy.^2)) - sqrt( xmean^2 + ymean^2);

function res  = calc_resolution(qmi, map)
   res = sqrt( sum(qmi(:)) / sum(map(:)));

function sd  = calc_shape_deform(qmi, equiv_circ)
   not_circ= qmi & ~equiv_circ;
   sd = sum(not_circ(:))/sum(qmi(:));

function rr = calc_ringing(img, qmi );
   ring_part =  img .* ( (img<0) & ~qmi);
   rr = -sum( ring_part(:) )/sum( img(:).*qmi(:) );

function [xmean,ymean,equiv_circ,map,qmi,img] = calc_cofg(img);
%  if abs(max(img(:))) < abs(min(img(:))); img= -img; end
   qmi = calc_hm_set( img, 0.25 );
   if sum(img(:) & qmi(:))<0 ; keyboard ; end
   [x,y]=meshgrid(linspace(-1,1,32),linspace(-1,1,32)); map = x.^2+y.^2<1.1;
   qmi = qmi.*map; img = img.*map;

   ss_qmi = sum(qmi(:));
   xmean =  sum(sum( (qmi.*x) ))/ss_qmi; % centre of gravity
   ymean =  sum(sum( (qmi.*y) ))/ss_qmi;
   equiv_circ = (x-xmean).^2 + (y-ymean).^2 < ss_qmi/pi/(32/2)^2;

Calculate noise performance

Noise parameters are based on the Noise Figure which estimates the amplification of noise through the reconstruction algorithm (as a function of radial position).

The desired Noise Figure should be as low as possible.

Noise sources include: 1) Pseudo-random Gaussian noise, and 2) Measured phantom noise (from Hahn et al, 2008).

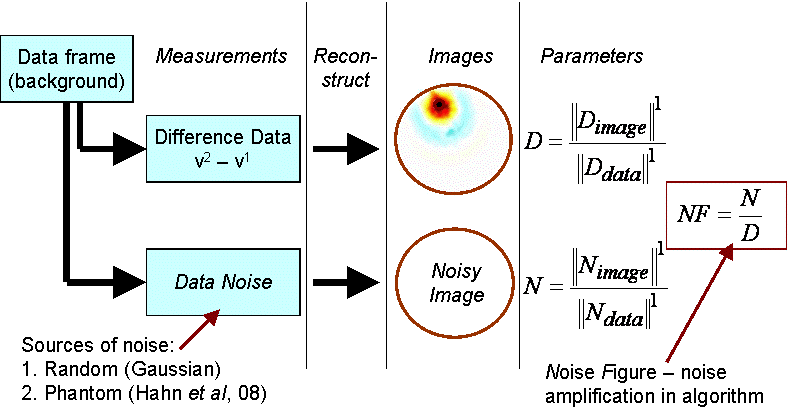

Calculation of noise parameters for reconstructed images. Note that the l1 norm is used for clarity in the figure. Other norms are possible:
The parameters listed previously are calculated from images using the function GREIT_sim_params.m.
function params = GREIT_noise_params(imgs, alg, vh, vi )
% params = GREIT_noise_params(imgs, homg_voltage, sig_voltage)
%  params(1,:) = Noise Figure

% (C) 2008 Andy Adler. Licensed under GPL v2 or v3
% $Id: GREIT_noise_params.m 1622 2008-09-26 14:06:17Z aadler $

% There are better ways here
noise = 0.01*std(vh)*randn(208,1000);
vhn= vh*ones(1,size(noise,2));
%signal_y = vi -  (vh*ones(1,size(vi,2)));
 signal_y = vi ./ (vh*ones(1,size(vi,2))) - 1;
%noise_y  = mean(std(noise      ),2);
 noise_y  = mean(std(noise./vhn ),2);
snr_y = mean(abs(signal_y),1) / noise_y;

im_n= feval(alg, vh, vhn + noise);
%signal_x = mean(mean(abs(imgs),1),2);
 signal_x = mean(mean(   (imgs),1),2);
%noise_x  = mean(abs(im_n(:)));
 noise_x  = mean(std(std(im_n)));
snr_x = signal_x / noise_x;
params= [snr_y(:)./snr_x(:)]';

Parameters from example images

In order to display the parameters from the example images, we calculate:
% Calc Parameters $Id: simulation_test04.m 1726 2008-12-02 11:43:20Z aadler $

subplot(421); algs = get_list_of_algs;

for i= 1:length(algs)
   img = feval(algs{i}, vh, vi );
   param= [GREIT_noise_params(img, algs{i}, vh, vi); ... % noise parameters
           GREIT_sim_params(  img, xyzr_pt)];            % image parameters

   for j=1:size(param,1)
      plot(param(j,:));
      set(gca,'XTickLabel',[]); set(gca,'XLim',[1,size(param,2)])
      if     j==1; set(gca,'YLim',[0,3.5]);      % Noise Figure
      elseif j==2; set(gca,'YLim',[0,1.5]);      % Amplitude
      elseif j==3; set(gca,'YLim',[-0.05,0.25]);  % Posn Error
      elseif j==4; set(gca,'YLim',[0,0.4]);      % Resolution
      elseif j==5; set(gca,'YLim',[0,0.5]);      % Shape Deform
      elseif j==6; set(gca,'YLim',[0,1.5]);      % Ringing
      end
      print('-dpng','-r200',sprintf('simulation_test_imgs/simulation_test04_%d%d.png',i,j));
      print('-dpng','-r100',sprintf('simulation_test_imgs/simulation_test04sm_%d%d.png',i,j));
   end
end

!find simulation_test_imgs -name s*0*_??.png -exec convert -trim '{}' png8:'{}' ';'

Sheffield
Backproj
NOSER
Norm Diff
NOSER
Diff
Amplitude
Want:
uniform
Position
Error
Want:
small,uniform
Resolution
Want:
small,uniform
Shape
Deformation
Want:
small,uniform
Ringing
Want:
small
Noise
Figure
Want:
small

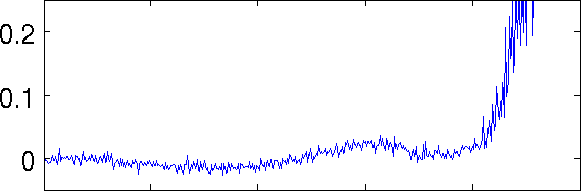

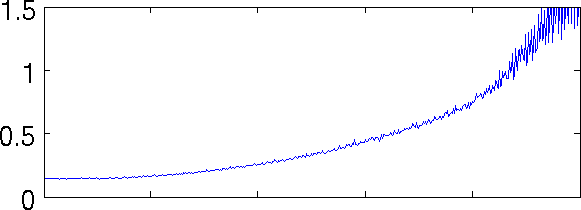

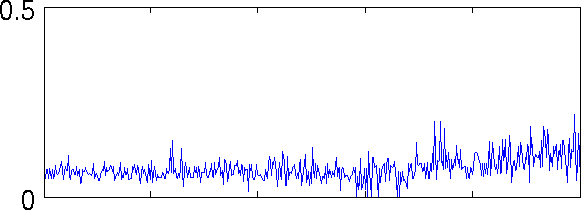

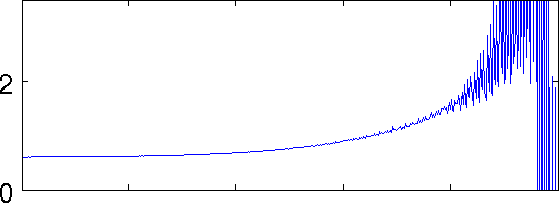

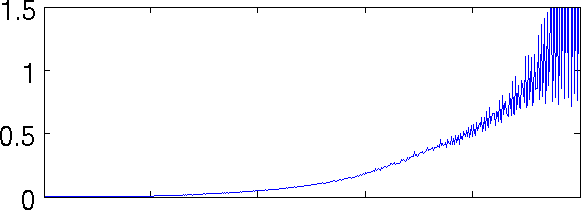

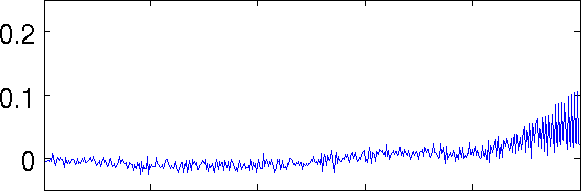

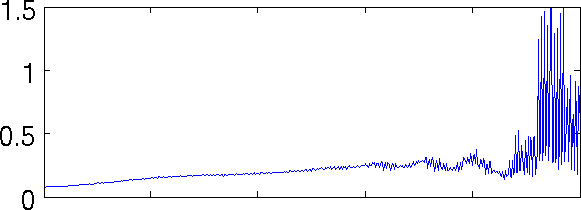

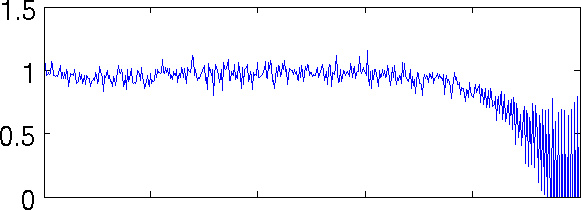

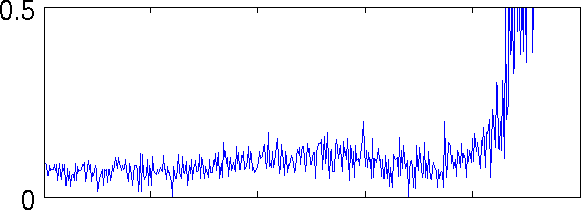

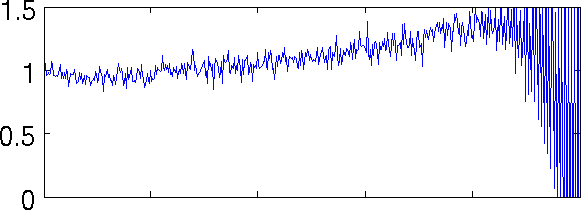

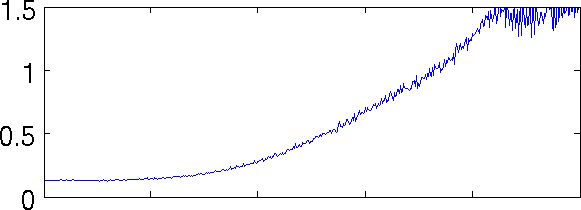

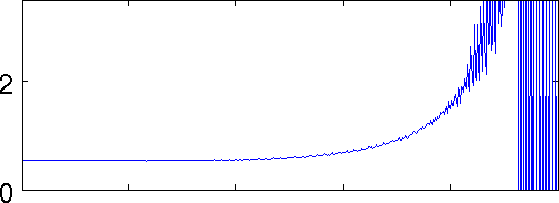

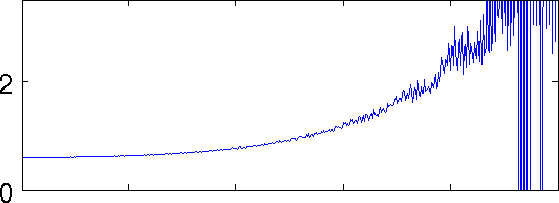

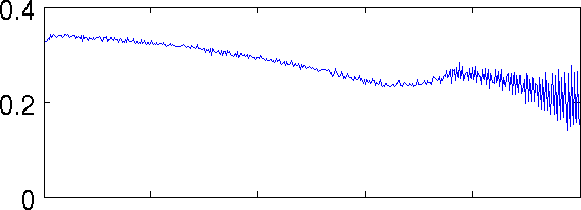

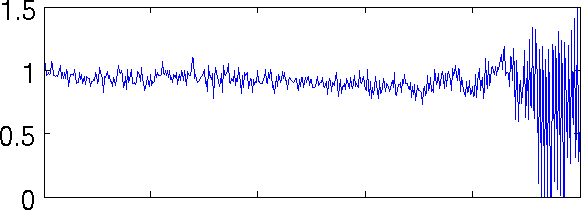

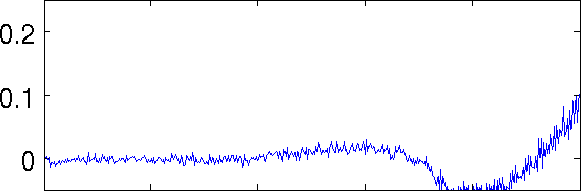

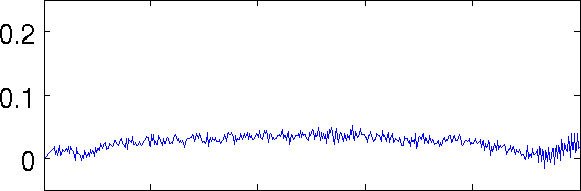

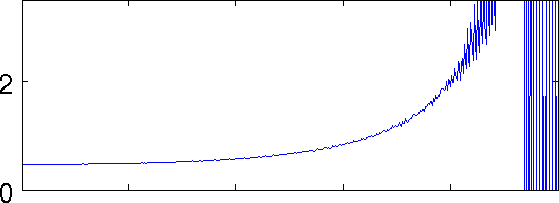

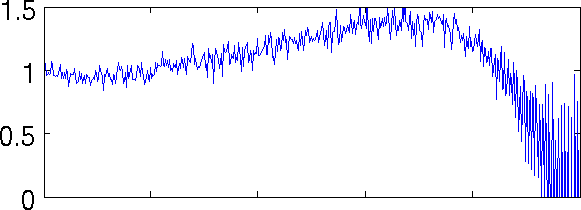

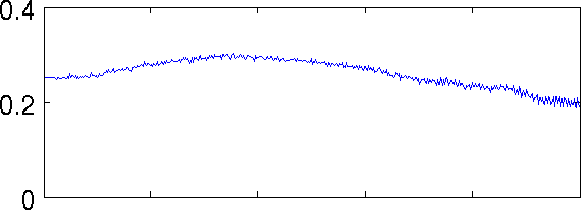

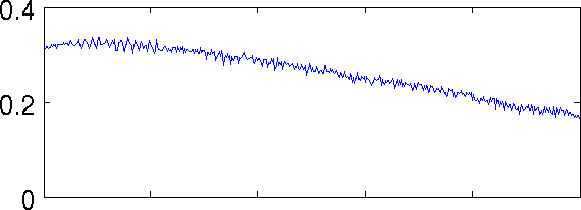

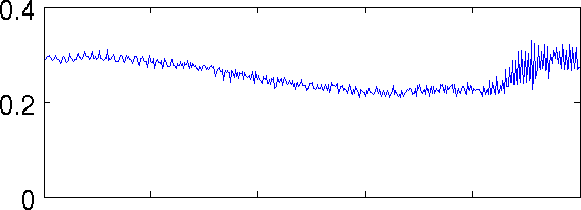

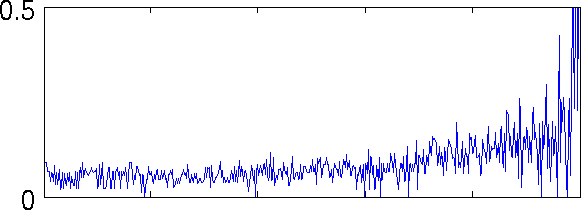

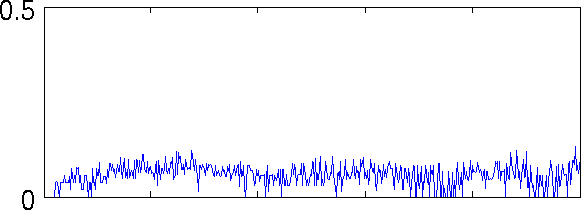

Plots of parameters as a function of radial position (left is centre, right is the boundary)
