Using Netgen to create general (arbitrary) EIDORS ModelsEIDORS can use Netgen to create sophisticated 2D and 3D modelsHere are some examples of the varity of models which can be generated using the function: ng_mk_gen_models.

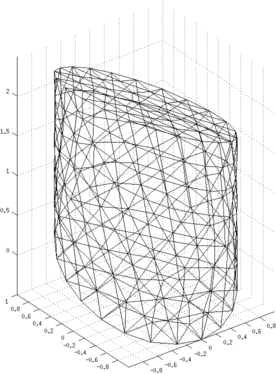

Shape 1
shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid p1= plane(0,0,0;0,0.5,-1);\n' ...
'solid p2= plane(0,0,2;0.5,0, 1);\n' ...
'solid mainobj= p1 and p2 and cyl -maxh=0.3;\n'];
elec_pos = []; elec_shape = []; elec_obj = {};
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );

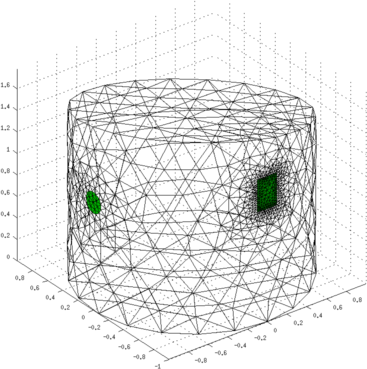

Shape 2
shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid mainobj= plane(0,0,0;0,0,-1)\n' ...
'and plane(0,0,1.5;0.2,0.2,1)\n' ...
'and cyl -maxh=0.3;\n'];
elec_pos = [ -1, 0, 1, 1, 0, 0;
0, -1,1.2, 0, 1, 0];
elec_shape=[0.1,0,0;0.2,0.3,0.02];
elec_obj = 'cyl';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );

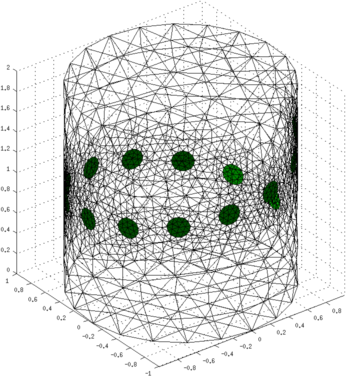

Shape 3
shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid mainobj= orthobrick(-2,-2,0;2,2,2) and cyl -maxh=0.3;\n'];
th = linspace(0,2*pi,15)'; th(end) = [];
cs = [cos(th), sin(th)];
elec_pos = [ cs, th/2/pi + 0.5, cs, 0*th];
elec_shape=[0.1];
elec_obj = 'cyl';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );
Shape 4

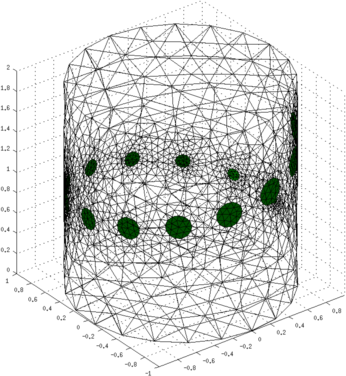

shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid mainobj= orthobrick(-2,-2,0;2,2,2) and cyl -maxh=0.3;\n'];
th = linspace(0,2*pi,15)'; th(end) = [];
cs = [cos(th), sin(th)];
elec_pos = [ cs, th/2/pi + 0.5, cs, 0*th];
elec_shape=[0.1*th/2/pi + 0.05];
elec_obj = 'cyl';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );
Shape 5

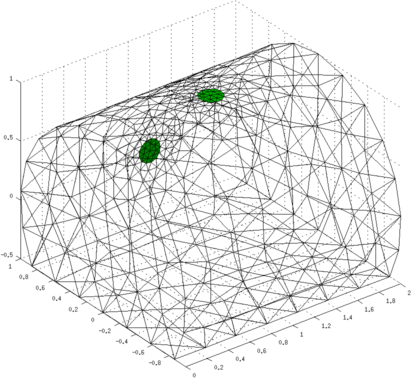

shape_str = ['solid cyl = cylinder (0,0,0; 1,0,0; 1); \n', ...
'solid mainobj= plane(0,0,0;-1,0,0)\n' ...
'and plane(2,0,0;1,0,0)\n' ...
'and plane(0,0,-0.5;0,0,-1)\n' ...
'and cyl -maxh=0.3;\n'];
elec_pos = [ 1, 0, 1, 0, 0, 1;
1.2, 1, 0, 0, 1, 0];
elec_shape=[0.1];
elec_obj = 'cyl';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );
Shape 6

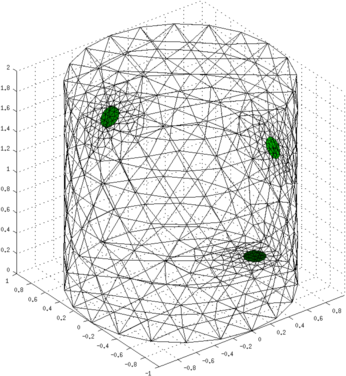

shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid bottom = plane(0,0,0;0,0,-1);\n' ...
'solid top = plane(0,0,2;0,0,1);\n' ...
'solid mainobj= top and bottom and cyl -maxh=0.3;\n'];
elec_pos = [ 1, 0, 1, 1, 0, 0;
0, 1,1.2, 0, 1, 0;
0.8, 0, 0, 0, 0, -1];
elec_shape=[0.1];
elec_obj = {'cyl','cyl','bottom'};
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );

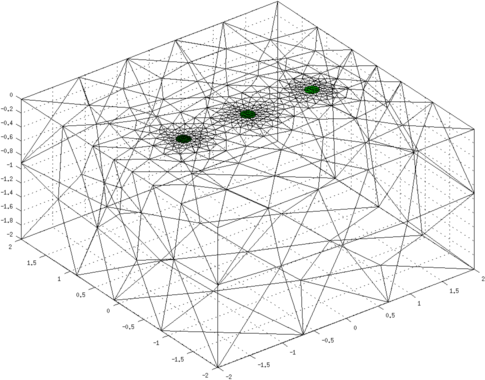

Shape 7
shape_str = ['solid top = plane(0,0,0;0,0,1);\n' ...
'solid mainobj= top and orthobrick(-2,-2,-2;2,2,0);\n'];
elec_pos = [ 1, 0, 0, 0, 0, 1;
0, 0, 0, 0, 0, 1;
-1, 0, 0, 0, 0, 1];
elec_shape=[0.1];
elec_obj = 'top';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );

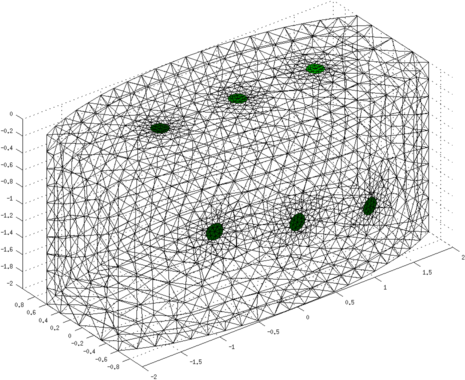

Shape 8
shape_str = ['solid top = plane(0,0,0;0,0,1);\n' ...
'solid cyl = ellipticcylinder(0,0,0;2.5,0,0;0,1,0);\n' ...
'solid mainobj= top and cyl and orthobrick(-2,-2,-2;2,2,0);\n'];
elec_pos = [ 1, 0, 0, 0, 0, 1;
0, 0, 0, 0, 0, 1;
-1, 0, 0, 0, 0, 1;
1, -1,-1.2, 0, -1, 0;
0, -1,-1.0, 0, -1, 0;
-1, -1,-0.8, 0, -1, 0];
elec_shape=[0.1];
elec_obj = {'top','top','top','cyl','cyl','cyl'};
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
show_fem( fmdl );

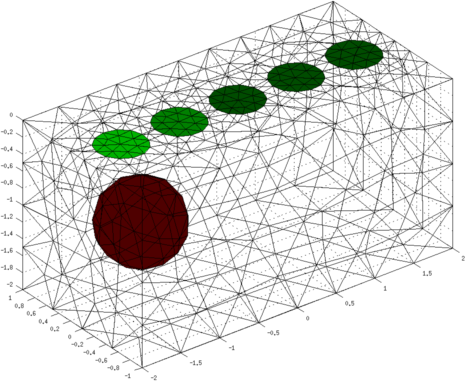

Shape 9
shape_str = ['solid top = plane(0,0,0;0,0,1);\n' ...
'solid ball = sphere(-1.25,0,-1;0.5); tlo ball;\n' ...
'solid mainobj= top and orthobrick(-2,-1,-2;2,1,0) and not ball -maxh=0.5;\n'];
elec_pos = linspace( -1.5,1.5,5)';
elec_pos = [ elec_pos, elec_pos*[0,0,0,0], elec_pos*0+1];
elec_shape=[0.3];
elec_obj = 'top';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
img = mk_image( fmdl, 1);
img.elem_data(fmdl.mat_idx{2}) = 1.1;
show_fem( img );

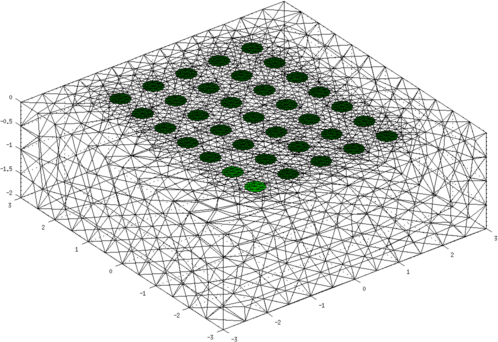

Shape 10
shape_str = ['solid top = plane(0,0,0;0,0,1);\n' ...
'solid mainobj= top and orthobrick(-3,-3,-2;3,3,0) -maxh=0.5;\n'];
[elec_pos_x,elec_pos_y] = meshgrid(linspace( -1.5,1.5,5),linspace(-2,2,7));
elec_pos = [ elec_pos_x(:), elec_pos_y(:), ones(size(elec_pos_x(:)))*[0,0,0,1] ];
elec_shape=[0.2];
elec_obj = 'top';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
Shape 11This shape could represent an elliptical fish or submarine generating electrical signals in a tank with electrodes on the tank boundary.
shape_str = ['solid cyl = cylinder (0,0,0; 0,0,1; 1.0); \n', ...
'solid tank = orthobrick(-2,-2,0;2,2,0.4) and cyl; \n', ...
'solid fish = ellipsoid(0.2,0.2,0.2;0.2,0,0;0,0.1,0;0,0,0.1); tlo fish;\n', ...
'solid mainobj= tank and not fish -maxh=0.3;\n'];
n_elec = 7;
th = linspace(0,2*pi,n_elec+1)'; th(end) = [];
cs = [cos(th), sin(th)];
elec_pos = [ cs, 0.2+0*th, cs, 0*th];
elec_shape=[0.05];
for i=1:n_elec; elec_obj{i} = 'cyl'; end
i=i+1;elec_pos(i,:) = [ 0 ,0.2,0.2,-1,0,0]; elec_obj{i} = 'fish';
i=i+1;elec_pos(i,:) = [ 0.4,0.2,0.2, 1,0,0]; elec_obj{i} = 'fish';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
Tank with 7 electrodes on the boundary an two electrodes on the inclusion. Shape 12

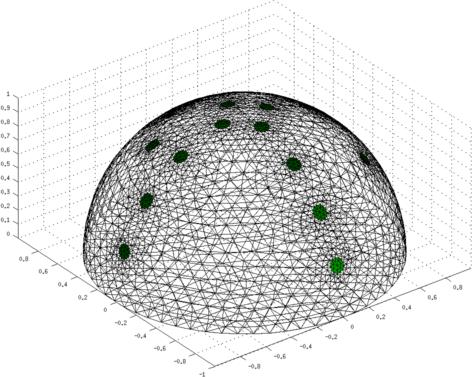

shape_str = ['solid top = ellipsoid(0,0,0; 0,0,1; 1,0,0; 0,1,0); \n' ...
'solid mainobj= top and orthobrick(-2,-2,0;2,2,2) -maxh=0.1;\n'];
deg2rad = pi/180;
th = (-70:20:70)'*deg2rad;
elec_pos = [0*th,sin(th),cos(th),0*th,sin(th),cos(th); ...
sin(th),0*th,cos(th),sin(th),0*th,cos(th)];
elec_shape=[0.05];
elec_obj = 'top';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
Half sphere with top surface electrodes Shape 13
shape_str = ['solid cyl = cylinder (0,0,0; 0,1,0; 1); \n', ...
'solid bottom = plane(0, 0,0;0,-1,0);\n' ...
'solid top = plane(0,10,0;0, 1,0);\n' ...
'solid cut1 = plane(0, 4,0;0,-1,0);\n' ...
'solid cut2 = plane(0, 6,0;0, 1,0);\n' ...
'solid ball = cyl and cut1 and cut2; tlo ball;\n' ...
'solid mainobj= ( top and (not cut2) and cyl ) or ' ...
'(bottom and (not cut1) and cyl ) -maxh=0.8;\n'];
elec_pos = [ 0, 10, 0, 0, 1, 0;
0, 0, 0, 0, -1, 0];
elec_shape=[1.0];
elec_obj = {'top','bottom'};
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
img = mk_image(fmdl,1);
img.elem_data(fmdl.mat_idx{2}) = 1.1;
Fem model of a cylindrical resistor with electrodes at the ends Shape 14
shape_str = ['solid cyl = cylinder (0,0,0; 0,1,0; 1); \n', ...
'solid bottom = plane(0, 0,0;0,-1,0);\n' ...
'solid top = plane(0,15,0;0, 1,0);\n' ...
'solid cut1 = plane(0, 6,0;0,-1,0);\n' ...
'solid cut2 = plane(0, 9,0;0, 1,0);\n' ...
'solid rod = cyl and (top and not cut2) or cyl and (bottom and not cut1);\n' ...
'tlo rod -maxh=0.8;\n',...
'solid mainobj= orthobrick(-5,-5,-5;5,20,5) and not rod;\n'];
elec_pos = [0,15, 0, 0, 1, 0; %top end electrode
0,13, 0,-1, 0, 0; %top cylinder electrode
0, 0, 0, 0,-1, 0; %bot end electrode
0, 2, 0, 1, 0, 0];%bot cylinder electrode
elec_shape=[6,0,0];
elec_obj = {'rod','rod','rod','rod'};
[fmdl,mat_idx] = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
img = mk_image(fmdl,1);
% join electrodes
fmdl.electrode(3).nodes = unique(horzcat(fmdl.electrode(3:4).nodes));
fmdl.electrode(4) = [];
fmdl.electrode(1).nodes = unique(horzcat(fmdl.electrode(1:2).nodes));
fmdl.electrode(2) = [];

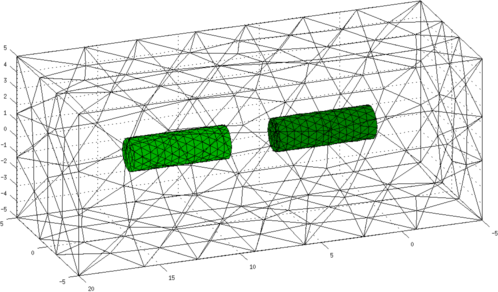

Bare conductive wires within a tank Shape 15
shape_str = [ ...
'solid cyl = cylinder (-2,0,0;-2,0,1; 0.1); \n', ...
'solid borehole= cyl and plane (0,0,-2;0,0,-1); \n', ...
'solid cel1= orthobrick(-10,-10,-1.1;10,10,-1.0) and cyl; tlo cel1 -maxh=0.5;\n' ...
'solid cel2= orthobrick(-10,-10,-1.6;10,10,-1.5) and cyl; tlo cel2 -maxh=0.5;\n' ...
'solid top = plane(0,0,0;0,0,1);\n' ...
'solid top_obj= top and orthobrick(-5,-5,-5;5,5,0) -maxh=0.5;\n' ...
'solid mainobj= top_obj and not borehole;\n'];
[elec_pos_x,elec_pos_y] = meshgrid(linspace( -1.5,1.5,3),linspace(-2,2,4));
elec_pos = [ elec_pos_x(:), elec_pos_y(:), ones(size(elec_pos_x(:)))*[0,0,0,1] ];
elec_shape=[0.1];
elec_obj = repmat({'top'}, 1, size(elec_pos,1));
elec_pos(end+1,:) = [-2.0,0,-1.05,0,0,1]; elec_obj(end+1) = {'cel1'};
elec_pos(end+1,:) = [-2.0,0,-1.55,0,0,1]; elec_obj(end+1) = {'cel2'};
[fmdl,mat_idx] = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
To crop the model, use the code
crop_model([], inline('z<-2 | abs(x)>2.5 | abs(y)>2.5','x','y','z'));
axis([-2.5,2.5,-2.5,2.5,-2,0]);

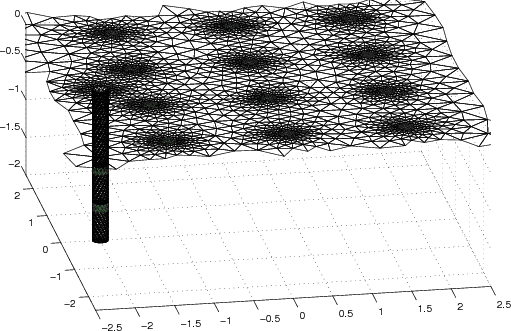

Surface electrodes and ring electrodes on a borehole Shape 16

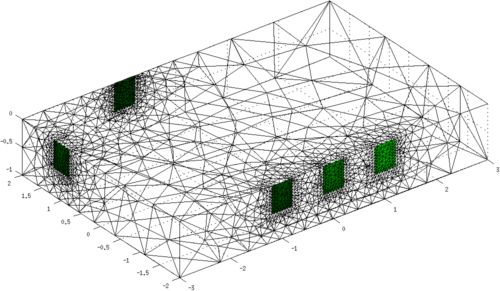

shape_str = ['solid top = plane( 0, 0, 0; 0, 0, 1);\n' ...
'solid bot = plane( 0, 0,-1; 0, 0,-1);\n' ...
'solid xmax = plane( 3, 0, 0; 1, 0, 0);\n' ...
'solid xmin = plane(-3, 0, 0;-1, 0, 0);\n' ...
'solid ymax = plane( 0, 2, 0; 0, 2, 0);\n' ...
'solid ymin = plane( 0,-2, 0; 0,-2, 0);\n' ...
'solid mainobj= top and bot and xmax and xmin and ymax and ymin;'];
elec_pos = [ 1, -2, 0, 0, 1, 0;
0, -2, 0, 0, 1, 0;
-1, -2, 0, 0, 1, 0;
-1, 2, 0, 0, -1, 0;
-3, 1, 0, -1, 0, 0];
elec_shape=[0.4,1,0.05];
elec_obj = {'ymin', 'ymin', 'ymin','ymax','xmin'};
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);

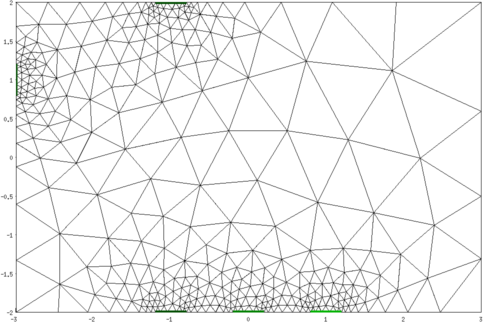

To crop the z=0 layer, use
fmdl = mdl2d_from3d(fmdl);
A 2D slice of a model on the z=0 plane Shape 17

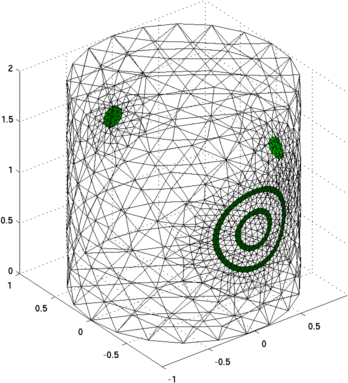

shape_str = [ ...
'solid cyl = cylinder (0,0,0; 0,0,1; 1); \n', ...
'solid mainobj= plane(0,0,0;0,0,-1)\n' ...
'and plane(0,0,2;0,0,1)\n' ...
'and cyl -maxh=0.3;\n' ...
'solid in_elec = sphere(0,-1,1;0.2)' ...
'and not sphere(0,-1,1;0.15) -maxh=0.05;\n' ...
'solid in_elec0= in_elec and mainobj;\n' ...
'tlo in_elec0 cyl;\n' ...
'solid out_elec = sphere(0,-1,1;0.4)' ...
'and not sphere(0,-1,1;0.35) -maxh=0.05;\n' ...
'solid out_elec0= out_elec and mainobj;\n' ...
'tlo out_elec0 cyl;\n'];
% Find a background electrode (for all) first. This will stop errors in the next
elec_pos = [ 0, -1, 0, NaN,NaN,NaN;
1, 0, 1, 1, 0, 0;
0, 1, 1.2, 0, 1, 0;
0, -1, 1.2, NaN,NaN,NaN;
0, -1, 1.4, NaN,NaN,NaN];
elec_shape=[0.1];
elec_obj = 'cyl';
fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
% Throw away the first electrode (background). We don't need it
fmdl.electrode = fmdl.electrode(2:end);
Complex electrodes defined from intersection with spheres Shape 18
shape_str= [ ...
'solid top = plane(0,0,0;0,1,0);\n' ...
'solid cut2d = plane(0,0,0;0,0,1) -maxh=0.15;\n' ...
'solid mainobj= top and cut2d and orthobrick(-2,-2,-1;2,2,1);\n'];
x_elec_pos = linspace(-1.5,1.5,5);
elec_pos = x_elec_pos(:)*[1,0,0,0,0,0];
elec_pos(:,5) = 1;
elec_shape=[0.05];
elec_obj = 'top';
fmdl3= ng_mk_gen_models(shape_str, ...
elec_pos, elec_shape, elec_obj);
subplot(121); show_fem(fmdl3);
fmdl2 = mdl2d_from3d( fmdl3);
subplot(122); show_fem_enhanced( fmdl2);
gridx= linspace(-2.0,2.0,15);
gridy= linspace(-2.0,0,7);
[cmdl,c2f]= mk_grid_model(fmdl2,gridx,gridy);
fmdl2.coarse2fine = c2f;
hold on; hh=show_fem(cmdl);
set(hh,'LineWidth',2,'EdgeColor',[.5,.7,1],'FaceAlpha',0);

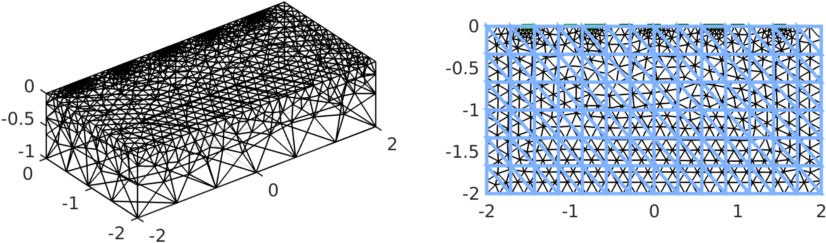

Grid model on onto a 2D model from a z=0 slice of a 3D model |
