Using Netgen to create extruded EIDORS Models

EIDORS can use Netgen to create sophisticated 2D and 3D models/. For these examples, you need at least Netgen version 4.9.13. Please note that netgen takes much longer to calculate these complicated shapes (especially those with inner shapes) than some simpler examples.

Here are some examples of the varity of models which can be generated using the function: ng_mk_extruded_model.

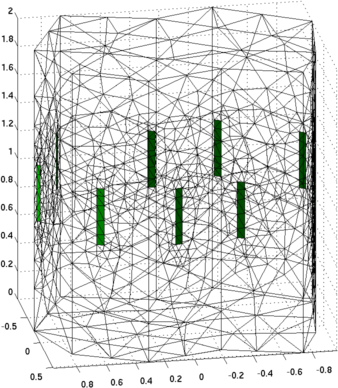

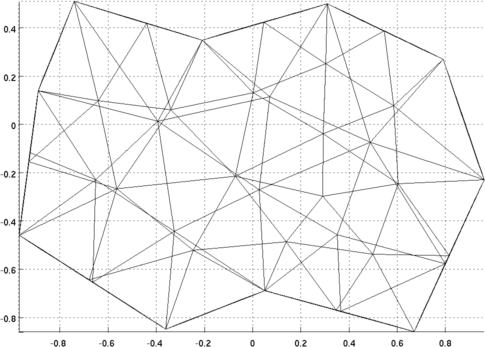

Extruded 3D shape with 9 rectuangular electrodes

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
fmdl = ng_mk_extruded_model({2,xy,1},[9,0,1],[0.05,0.4]);

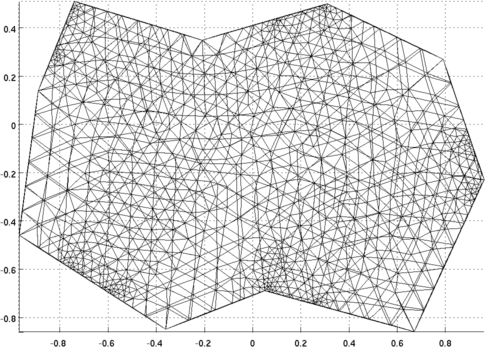

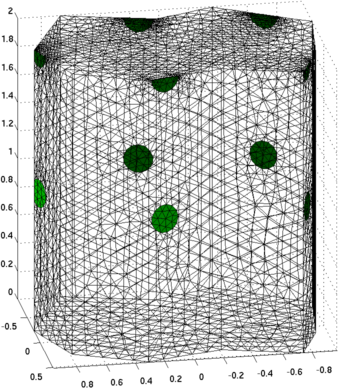

Extruded 3D shape with mesh refinement and 5 large circular electrodes

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
fmdl = ng_mk_extruded_model({2,xy,1,0.1},[5,0,1,2],[0.10]);

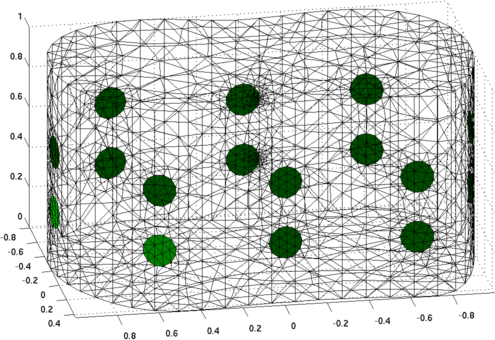

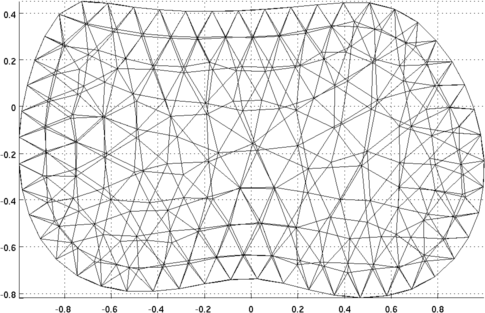

Extruded 3D shape mesh with boundary interpolation

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
fmdl = ng_mk_extruded_model({1,xy,[4,50]},[8,0,0.3,0.6],[0.08]);

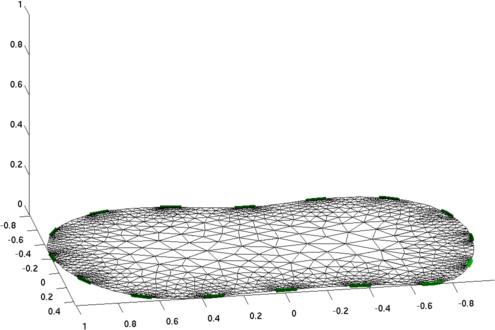

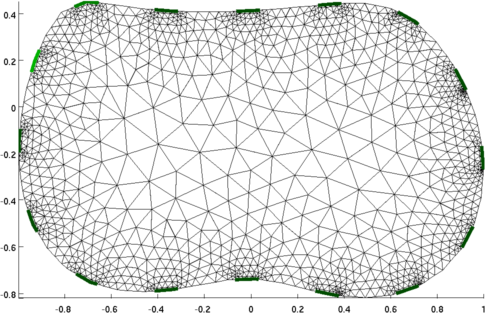

2D shape mesh boundary interpolation

Here, we use 47 interpolation points, because Netgen fails with 50. Just one of its paculiarites. Read more in the FAQ.
xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
fmdl = ng_mk_extruded_model({0,xy,[4,47]},[16,1],[0.1]);

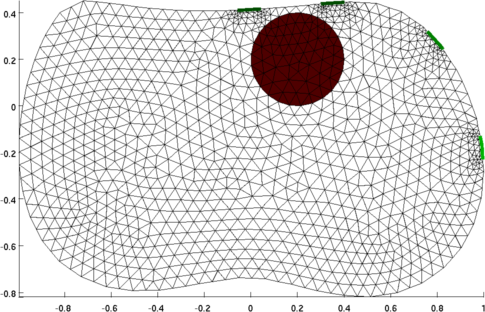

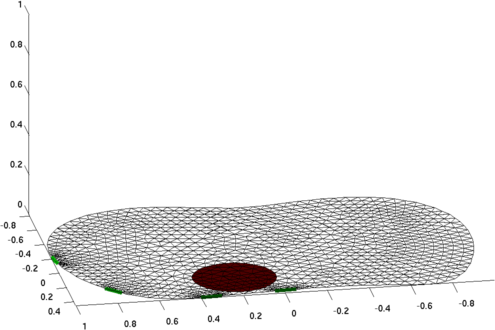

2D shape with object and specific electrode positions

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
extra={'ball','solid ball = cylinder(0.2,0.2,0;0.2,0.2,1;0.2) and orthobrick(-1,-1,0;1,1,0.05) -maxh=0.05;'};
elec_pos = [0, 0; 30,0;60,0;90,0];
fmdl = ng_mk_extruded_model({0,xy,[4,49]},elec_pos,[0.1],extra);
img = mk_image(fmdl,1);
img.elem_data( fmdl.mat_idx{2} ) = 1.1;

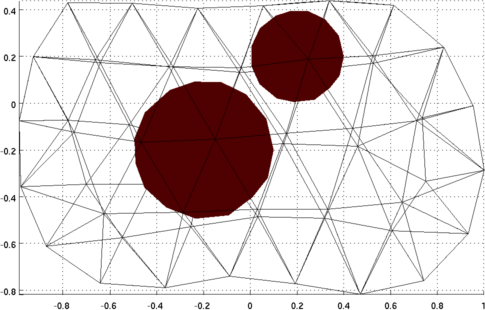

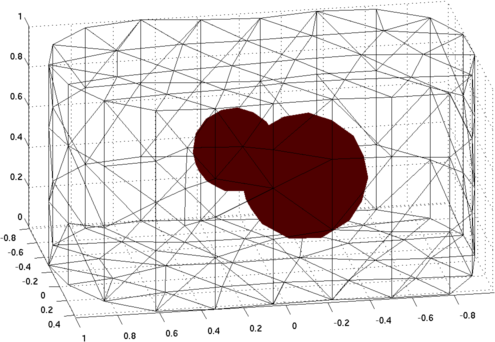

3D shape with two objects and no electrodes

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
extra={'twoball','solid twoball = sphere(0.2,0.2,.7;0.2) or sphere(-0.2,-0.2,.4;0.3);'};
fmdl = ng_mk_extruded_model({1,xy,[4,20]},[0,0],[0.05],extra);
img = mk_image(fmdl,1);
img.elem_data( fmdl.mat_idx{2} ) = 1.1;

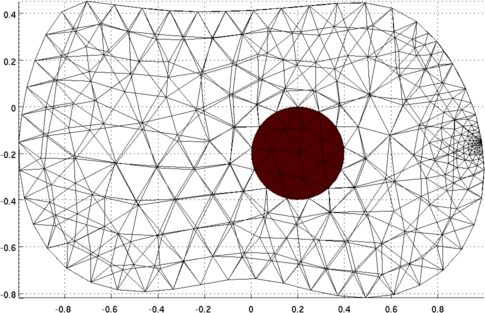

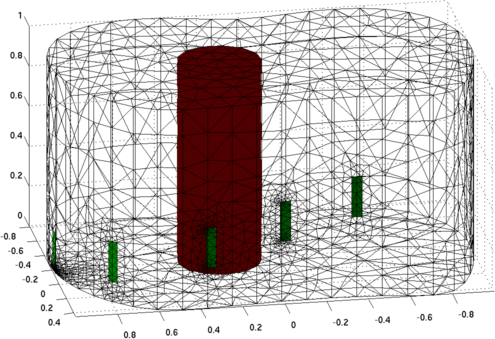

3D shape with custom electrodes

xy= [ -0.89 -0.74 -0.21  0.31  0.79  0.96  0.67  0.05 -0.36 -0.97;
       0.14  0.51  0.35  0.50  0.27 -0.23 -0.86 -0.69 -0.85 -0.46]';
elec_pos = [0, 0.1; 30,0.2; 60,0.3; 90,0.4;120,0.5];
extra={'cyl','solid cyl = cylinder(0.2,-0.2,0;0.2,-0.2,1;0.2) and orthobrick(-1,-1,0;1,1,1);'};
fmdl = ng_mk_extruded_model({1,xy,[4,47]},elec_pos,[0.05,0.2],extra);
img = mk_image(fmdl,1);
img.elem_data( fmdl.mat_idx{2} ) = 1.1;

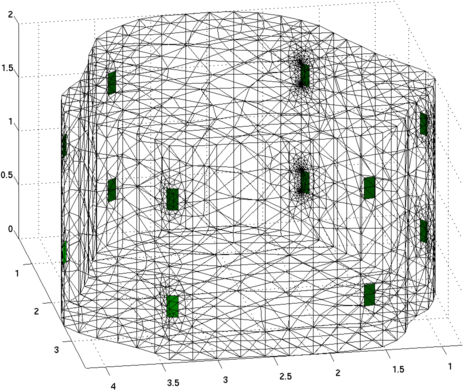

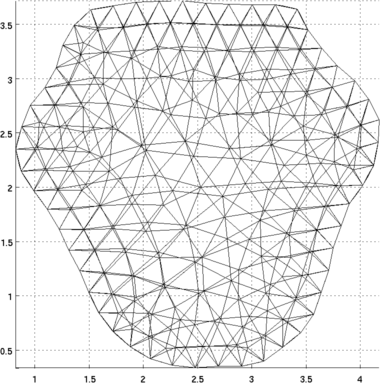

Thorax with two layers of electrodes

This example requires the coordinates from CT2.mat here.
load CT2.mat;
fmdl = ng_mk_extruded_model({2,trunk/100 ,[4,50]},[6,0,0.5,1.5],[0.1,0.2]);

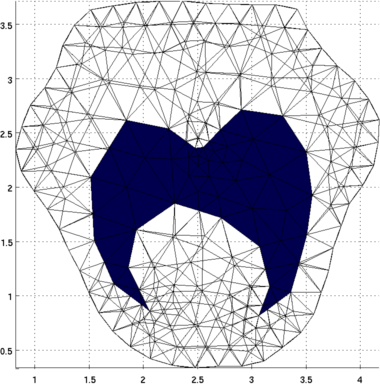

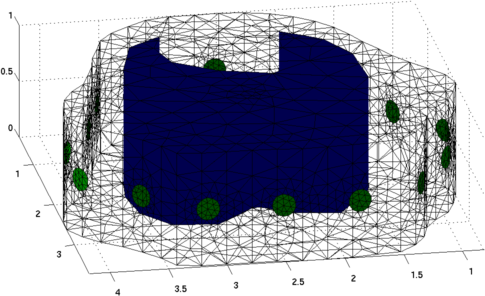

Thorax with lung with 16 circular electrodes

This example requires the coordinates from CT2.mat here.
load CT2.mat; lung = flipud(lung(1:3:end,:));
fmdl = ng_mk_extruded_model({1,{trunk/100, lung/100} ,[4,50]},[16,0.5],[0.1]);
img = mk_image(fmdl,1);
img.elem_data( fmdl.mat_idx{2} ) = 0.9;
fmdl= img;
