Simulating Geophysical measurements around a borehole

Create 3D FEM model of the gallery

% Create 3D model of a tunnel $Id: tunnelsim01.m 2356 2010-11-08 08:41:42Z aadler $

N_elec = 16;
shape_str = ['solid incyl  = cylinder (0,0,0; 1,0,0; 1) -maxh=1.0; \n', ...
             'solid farcyl = cylinder (0,0,0; 1,0,0; 5) -maxh=5.0; \n' ...
             'solid pl1    =  plane(-5,0,0;-1,0,0);\n' ...
             'solid pl2    =  plane(5,0,0; 1,0,0);\n' ...
             'solid mainobj= pl1 and pl2 and farcyl and not incyl;\n'];
th= linspace(0,2*pi,N_elec+1)'; th(end)=[];
cth= cos(th); sth=sin(th); zth= zeros(size(th));
 elec_pos = [zth, cth, sth, zth cth, sth];
 elec_shape=[0.01];
 elec_obj = 'incyl';
 fmdl = ng_mk_gen_models(shape_str, elec_pos, elec_shape, elec_obj);
subplot(221); show_fem( fmdl );

view(90,0); print_convert tunnelsim01a.png
view( 0,0); print_convert tunnelsim01b.png

crop_model([],  inline('x>=0.5','x','y','z'))
crop_model([],  inline('x<=-0.5','x','y','z'))
crop_model([],  inline('(y.^2+z.^2)>=1.3^2','x','y','z'))
view(-90,50); axis tight; print_convert tunnelsim01c.png

Figure: 3D FEM of gallery from two viewing angles, and a cropped model showing the electrodes

Place a simulated contrast

% Create 3D model of a tunnel $Id: tunnelsim02.m 3273 2012-06-30 18:00:35Z aadler $

% Simulation protocol.
stim = mk_stim_patterns(N_elec, 1, [0,4], [0,4], {'no_meas_current'},1);
fmdl.stimulation = stim;
cond_mdl = .1; % in S/m units
img = mk_image( fmdl, cond_mdl);
vs_h = fwd_solve( img);

img.elem_data = cond_mdl*(1 + mk_c2f_circ_mapping(fmdl, [0.25;1.4;0;0.2]) );
vs_i = fwd_solve( img);

show_fem(img); ylim(2*[-1,1]); zlim(2*[-1,1]);

view(90,0 ); print_convert tunnelsim02a.png
view( 0,90); print_convert tunnelsim02b.png

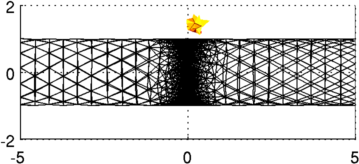

Figure: 3D FEM of gallery and contrast from two viewing angles.

Reconstruct images (using full 3D reconstruction)

% Create 3D model of a tunnel $Id: tunnelsim03.m 2359 2010-11-08 09:28:12Z aadler $

% Reconstruct entire image (slow)
imdl = mk_common_model('d2c2',N_elec);
imdl.fwd_model = fmdl;
imdl.jacobian_bkgnd.value = cond_mdl;

imgr = inv_solve( imdl, vs_h, vs_i );

imgr.calc_colours.npoints= 128;
slices = [0.0,inf,inf,1,1;
          0.5,inf,inf,2,1;
          1.0,inf,inf,3,1];
subplot(211); show_slices(imgr,slices);
print_convert tunnelsim03a.png

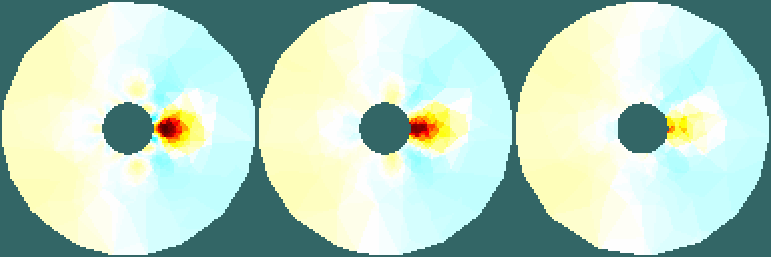

Figure: Slices Reconstructed at x=0.0, x=0.5, and x=1.0.

Reconstruct images (on a 2D simple slice)

% Create 3D model of a tunnel $Id: tunnelsim04.m 4839 2015-03-30 07:44:50Z aadler $

% Reconstruct to a slice via coarse2fine
% Use a simple circular model without hole.
% Note that this will give the wrong electrode posns
imdl = mk_common_model('d2c2',N_elec);
imdl.rec_model = imdl.fwd_model;
imdl.rec_model.nodes = imdl.rec_model.nodes*5; % Enlarge
imdl.fwd_model = fmdl;
imdl.jacobian_bkgnd.value = cond_mdl;

% Do coarse2fine mapping. Rotate mdl to z dirn
f1mdl = fmdl; f1mdl.nodes = f1mdl.nodes(:,[2,3,1]);
f1mdl.mk_coarse_fine_mapping.z_depth = 1;
c2f= mk_coarse_fine_mapping( f1mdl, imdl.rec_model);
imdl.fwd_model.coarse2fine = c2f;

imdl.hyperparameter.value = 0.3;

imgr = inv_solve( imdl, vs_h, vs_i );

imgr.calc_colours.npoints= 128; subplot(221);
show_slices(imgr); print_convert tunnelsim04a.png
show_fem(imgr);    print_convert tunnelsim04b.png

Figure: Slices 2D slices shown in two configurations

Reconstruct images (on a 2D conforming geometry)

% Create 2D model of a tunnel $Id: tunnelsim05.m 2361 2010-11-08 10:50:48Z aadler $

extra={'ball', 'solid ball = sphere(0,0,0;1) -maxh=0.25;'};
cmdl= ng_mk_cyl_models([0,15,3],[0],[0.1,0,0.05],extra);

show_fem(cmdl);                      print_convert tunnelsim05a.png
show_fem(cmdl); axis(2*[-1,1,-1,1]); print_convert tunnelsim05b.png

Figure: 2D FEM model for reconstruction and zoom

% Create 3D model of a tunnel $Id: tunnelsim06.m 4839 2015-03-30 07:44:50Z aadler $

imdl = select_imdl( fmdl, {'Basic GN dif'});
imdl.rec_model = cmdl;
imdl.jacobian_bkgnd.value = cond_mdl;

% Do coarse2fine mapping. Rotate mdl to z dirn
f1mdl = fmdl; f1mdl.nodes = f1mdl.nodes(:,[2,3,1]);
f1mdl.mk_coarse_fine_mapping.z_depth = 1;
c2f= mk_coarse_fine_mapping( f1mdl, cmdl);
imdl.fwd_model.coarse2fine = c2f;

imdl.hyperparameter.value = 0.3;

imgr = inv_solve( imdl, vs_h, vs_i );

imgr.calc_colours.npoints= 128; subplot(221);
show_slices(imgr); print_convert tunnelsim06a.png
show_fem(imgr);    print_convert tunnelsim06b.png
show_fem(imgr);    axis(3*[-1,1,-1,1]); print_convert tunnelsim06c.png

Figure: Reconstructed images
