Gauss Newton solvers in 3D

Simulation Model

%Homogeneous and inclusion conductivity
cond_h=1.0; cond_inc=2.0;
cc.ref_level = cond_h; cc.clim = 0.6; cc.cb_shrink_move = [.3,.8,.00];


%3D forward model without inclusion
mdl_h= ng_mk_cyl_models([1 .7],[16,.25,.75],[0.075,0.3]);

e_idx = elec_rearrange([16,2],'square'); %Square electrode pattern
mdl_h.electrode(e_idx) =  mdl_h.electrode;

%3D forward model with inclusion
extra={'ball','solid ball = sphere(0.2,0.2,0.5;0.2);'};
mdl_i= ng_mk_cyl_models([1 .7],[16,.25,.75],[0.075,0.3],extra);
mdl_i.electrode(e_idx) =  mdl_i.electrode;

%Stimulation patterns and add to models
stim=mk_stim_patterns(32,1,[0,5],[0,5]); % skip 4
mdl_h.stimulation=stim; mdl_i.stimulation=stim;

%Create two images
img_h= mk_image(mdl_h,cond_h);
img_i= mk_image(mdl_i,cond_h); img_i.elem_data(mdl_i.mat_idx{2}) = cond_inc;
img_h.calc_colours = cc;
img_i.calc_colours = cc;

%Now get "real" voltages and add noise
v_i=fwd_solve(img_i); v_i_n = add_noise( 20, v_i ); v_h=fwd_solve(img_h);

%Plot actual and simulated voltage and show slice through 3D image
%figure; hold on; plot(v_i.meas); plot(v_h.meas,'r'); hold off;
clf; axes('position',[0.2,0.2,0.6,0.6]);

show_3d_slices(img_i,0.6,0.3,0.3); view(-24,12);
eidors_colourbar(img_i);

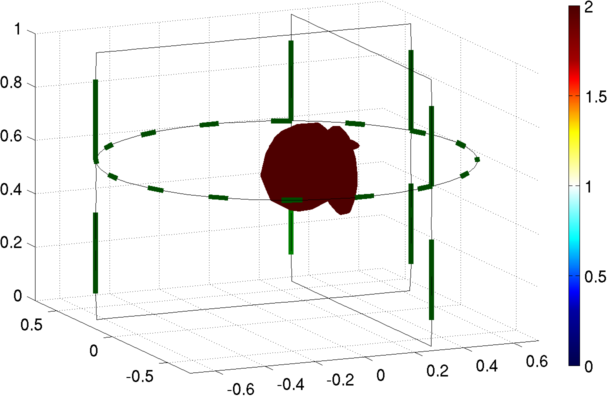

print_convert compare_3D_abs_GN_01a.png

show_fem_enhanced(img_i,[0,1]);

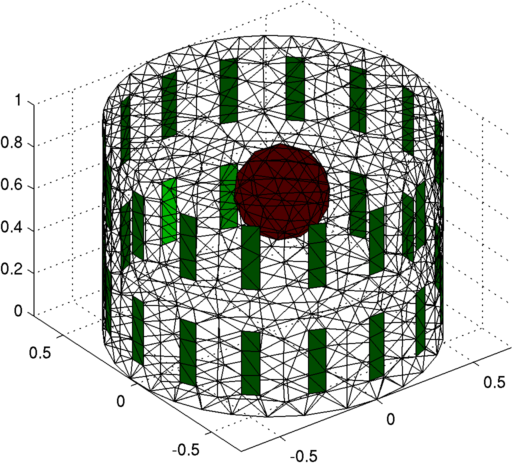

print_convert compare_3D_abs_GN_01b.png

Figure: Simulation model

Reconstruction with GN solver

%Inverse solution
imdl = mk_common_model('b2c2',32); %generic mdl
imdl.solve = @inv_solve_gn; %Default Gauss Newton solvers
imdl.fwd_model = mdl_i;
imdl.reconst_type = 'absolute';
imdl.jacobian_bkgnd.value= cond_h;

imdl.inv_solve_gn.max_iterations = 3 ; %Number of iterations

cb.cb_shrink_move = [0.5,0.8,0.00];

imdl.RtR_prior=@prior_noser;   hp = 1e-2;

imdl.hyperparameter.value = hp;
img   = inv_solve(imdl, v_i);     img.calc_colours = cc;
img_n = inv_solve(imdl, v_i_n);   img_n.calc_colours = cc;

clf; show_3d_slices(img,0.6,0.3,0.3);   eidors_colourbar(img);

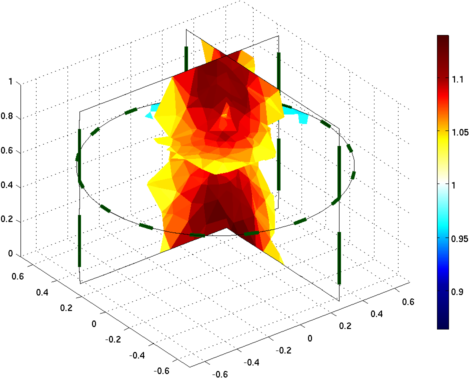

print_convert compare_3D_abs_GN_02a.png '-density 75'

clf; show_3d_slices(img_n,0.6,0.3,0.3); eidors_colourbar(img_n);
print_convert compare_3D_abs_GN_02b.png '-density 75'

%img.show_slices.levels = [inf,inf,.5,1,1;inf,inf,0.6,2,1]; show_slices(img);

Figure: Left Data without noise Right Data with noise

Reconstruction with GN solver with hyperparameter adjustment

%Alternative Gauss Newton solver, changing prior at each iteration
imdl.solve = @inv_solve_abs_GN_prior;
imdl.hyperparameter.value = .01;
img   = inv_solve(imdl, v_i);     img.calc_colours   = cc;
img_n = inv_solve(imdl, v_i_n);  img_n.calc_colours = cc;
vr_agn=fwd_solve(img); vr_agn_n=fwd_solve(img_n);

clf; show_3d_slices(img,0.6,0.3,0.3); eidors_colourbar(img);
print_convert compare_3D_abs_GN_03a.png '-density 75'

clf; show_3d_slices(img_n,0.6,0.3,0.3);
eidors_colourbar(setfield(img_n,'calc_colours',cb));

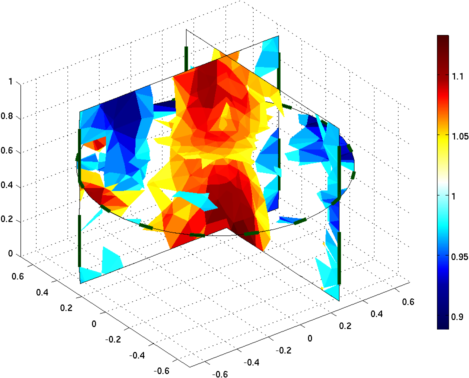

print_convert compare_3D_abs_GN_03b.png '-density 75'

Figure: Left Data without noise Right Data with noise

Reconstruction with constrained GN solver

%Constrained Gauss Newton solver
imdl.solve = @inv_solve_gn;
imdl.hyperparameter.value = hp;
% limit conductivity to be greater than 0 with a log parametrization
imdl.inv_solve_gn.elem_working = 'log_conductivity';

img   = inv_solve(imdl, v_i);    img.calc_colours   = cc;
img_n = inv_solve(imdl, v_i_n);  img_n.calc_colours = cc;

clf; show_3d_slices(img,  0.6,0.3,0.3); eidors_colourbar(img);

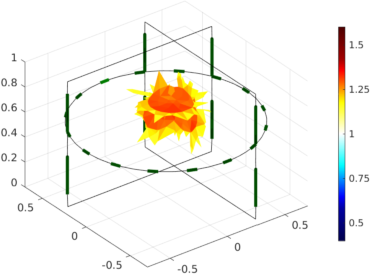

print_convert compare_3D_abs_GN_04a.png '-density 75'

clf; show_3d_slices(img_n,0.6,0.3,0.3); eidors_colourbar(img_n);

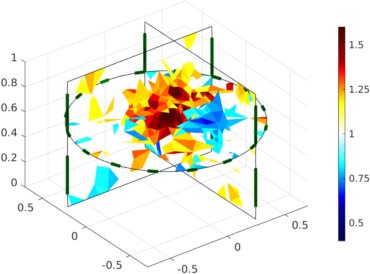

print_convert compare_3D_abs_GN_04b.png '-density 75'

Figure: Left Data without noise Right Data with noise
