Mobile Code Toolkit V1.6.2

Created by: Tony White

Getting Started

The Mobile Code Toolkit provides an infrastructure for the use of mobile code in network management. A mobile code (also known as a mobile agent) is a dynamic program that can travel through the network and execute on several hosts in order to complete a certain task. To accommodate and allow the mobile code to execute on a host, a daemon (i.e. an instance of the class mct.RMINetletDaemon) must be installed on the host computer. The mct.RMINetletDaemon is provided with security features in order to guard from dangerous attacks by potentially malicious mobile code circulating in the network.

This page has the following sections:


  1. An operating system that supports the Java Development Kit (JDK) version JDK1.1.6. The JDK can be obtained from Use of the JDK compiler is strongly recommended.
  2. For development, VisualAge for Java V1.0 or greater is highly recommended.
  3. The computer has a TCP/IP stack installed and is connected to a network.
  4. A Pentium class machine (166Mhz or greater) with 64Meg of memory.
  5. 5 Meg of disk space.
  1. Download the package distribution available in zip format from the Perpetuum Mobile Procura web page and save it in a temporary directory; e.g. Downloads.
  2. Create a new subdirectory (e.g. c:\mct) into which the toolkit files will be extracted.

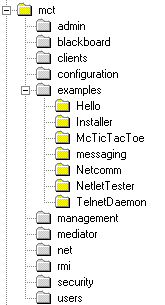

  3. Use WinZip to extract the package into the subdirectory that you just created on step 2. The package will be exploded and yield the following tree setup which reflects the package breakdown of the toolkit. Source (.java) and class  (.class) files are stored together in the same directory:

The examples directory provides a number of simple examples that exercise aspects of the toolkit:
  1. Set the CLASSPATH environment variable.
CLASSPATH Configuration

In order to use this package you should set your CLASSPATH environment variable to include the classes defined in the toolkit. The CLASSPATH environment variable should be extended with the directory chosen for installation; e.g. \mct. It is recommended that you chose the default directory for installation as the configuration files do not then need to be edited before the demonstration applications can be run.

For example, if you are using version 1.1.6 of the JDK, then your CLASSPATH should be set as:

The environment variable %mctoolkit% or $mctoolkit refers to the actual location of the package (e.g., c:\mct). So you may change directly the variable %mctoolkit% with the c:\mct or you may keep using the entry as mentioned above but set the environment variable %mctoolkit% first.

Run Demo

Several programs have been written to demonstrate what this toolkit can do. The demonstration assumes that a single machine is used and that two mobile code daemons are running on it. It should be noted that this version of the toolkit relies heavily on the use of RMI. In the instructions below, a PC is assumed. Text in italics should be typed as written. If you want to run the demonstration using the batch (.bat) files provided, then install the software in c:\mct and c:\test\mct. Remove the c:\test\mct\examples directory in order to ensure that you test the actual transfer of code from the WinMCTRMIClient to the running mobile code daemon.

In order to run the demonstration applications, you must:

  1. Run the rmiregistry process.
  2. Create a mobile code region (or running mobile agent system).
  3. Run the WinMCTRMIClient
Four batch files are also provided in the %mctoolkit%\configuration directory in order to automate the above:
  1. reg.bat [runs the rmiregistry]
  2. rm.bat [runs the remote mediator]
  3. nd01+nd02.bat [runs the two mobile code daemons, nd01 and nd02]
  4. client.bat [runs the WinMCTRMIClient]
If the RMI registry, mobile code region and WinMCTRMIClient execute successfully, you are now ready to view the simple demonstration applications. If the "class not found" error is observed, it probably means that the CLASSPATH environment variable is not set up correctly. Review the CLASSPATH section. If the console windows associated with the mobile code daemons contain "ERROR" or "WARNING" messages, it is likely that configuration files have been placed in the wrong directories. Review the placement of these files before continuing. If the default installation directory has been chosen (\mct), the configuration files should be present in \mct\configuration. If not, you will have to edit the,, and files to reflect the correct location of files in the file system.

Running the examples

The WinMCTRMIClient, shown above, is used to inject a mobile agent. In order to inject a mobile agent, four pieces of information must be provided:

  1. the mobile code name; e.g. Barney
  2. the fully qualified class name; e.g. mct.examples.MyNetlet
  3. the authority of the mobile agent; e.g. PUBLIC
  4. the URL of the migration facility that is to receive the injected mobile code.
When executed using the batch files provided, the WinMCTRMIClient accesses the c:\mct\configuration\ file. This file contains definitions of mobile code that may be injected into a running mobile code daemon, Using the two daemon example from above, the following tables provide reasonable values for execution of the Hello, McTicTacToe, TelnetDaemon, NetletTester, Netcomm and Blackboard examples. Note that these entries are present in the WinMCTRMIClient mobile code list if the client.bat batch file is used to execute the client application.
The netlet just prints on the console. The information that is displayed relates to the state that is carried with the netlet. It's not interesting per se, you should look at the onInit() and onStart() methods to see the correspondence between console output and netlet behaviour.
Mobile code MyHello
Class name mct.examples.Hello.Hello
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
This netlet places a game of tic-tac-toe. It demonstrates that a netlet can carry state with it as it migrates from one node to the next. Migration continues until the game completes. On each migration the user should see the state of the board displayed, and a message is written to the console when the game completes.
Mobile code MyTicTacToe
Class name mct.examples.McTicTacToe.McTicTacToe
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
This is a command line interpreter (i.e., an extension of the mobile code daemon which is subclass of Extlet) that can be accessed via a telnet application at port 9893. After you have sent the Hello netlet as shown above, you may send this extension to the mobile code daemon using the same procedure as sending the Hello netlet. Run a telnet application and telnet to localhost at port 9893. Now you can control the Hello netlet by calling its methods such as: start(), stop(), and destroy(). After you destroy the Hello netlet, all traces of the netlet will be removed from the mobile code daemon.
Mobile code MyTelnetDaemon
Class name mct.examples.TelnetDaemon.TelnetDaemon
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
This netlet demonstrates most of the capabilities of the package. It will examine managed objects of a network element whose handler, SimpleVMC, you first send. The netlet will also request that the mobile code daemon migrate it to the default destination. This will migrate the netlet back and forth from one daemon to another. However, the netlet has limited itself to migrate only twice; therefore, you will see that the netlet visits each daemon only once. NetletTester also demonstrates that a netlet can keep its persistent state that can be stored in its parameters.
Mobile code MySimpleVMC
Class name mct.examples.NetletTester.SimpleVMC
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
Having injected the SimpleVMC, the NetletTester is then injected.
Mobile code MyNetletTester
Class name mct.examples.NetletTester.NetletTester
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
NOTE: The field "Mobile code" in this example must be set to "NCX where X=02,01 or 03".
A set of mobile code demonstrates simple inter-mobile code communication. It consists of 3 mobile agents: i). NetComm01 that is used to send a message to NetComm02, ii) NetComm02 that waits for a message from NetComm01, iii) NetComm03 that sends a message to NetComm01. Use the injections sequence 02, 01 followed by 03 and observer the messages that are generated. Not, try to inject the mobile code with different sequence to see how the communication takes place. The NetComm example requires that a Mediator be running in order to relay messages and record the locations of all the mobile code in the mobile code region.
Mobile code NCX where X = 02,01 or 03.
Class name mct.examples.Netcomm.NetCommX where X = 02,01 or 03.
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
NOTE: The field "Mobile code" in this example must be set to "blackboard".
A blackboard is installed, followed by two netlets (mct.examples.messaging.NotifyNetlet) that register for changes in the value of the nhops key. A netlet (mct.examples.messaging.EnquireNetlet) that asks the blackboard for the current value of nhops is then installed followed by a netlet that posts a value of the number of times it has migrated (nhops). The posting netlet (mct.examples.messaging.PostNetlet) triggers the migration of the notified netlets when they receive a message from the blackboard indicating that a new nhops value has been posted. Once a notify or enquire netlet receives a message it migrates. After a post netlet has posted its current value of "nhops" to the blackboard, it migrates.
Mobile code blackboard
Class name mct.blackboard.MsgBlackBoard
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
Now the notification netlets:
Note: The two notify netlets must have different names, NN01 and NN02 are recommended.
Upon starting, the notification netlets register with the blackboard for changes in nhops. As a posting netlet has yet to be injected, they do nothing.
Mobile code NNX X=01,02
Class name mct.examples.messaging.NotifyNetlet
URL MFX[PUBLIC]@mct.admin.RemoteMigrationFacilitator X=01,02
Authority PUBLIC
Now the enquire netlet:
The enquire netlet will query the blackboard immediately and begin to migrate. As there is no value of nhops on the blackboard, it will be an unexpected response, as displayed on the Console.
Mobile code EN01
Class name mct.examples.messaging.EnquireNetlet
URL MF02[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC
Finally, the posting netlet:
The posting netlet puts a value of nhops on the blackboard. The interaction of netlets is now complete as the blackboard sends notification messages to the notification netlets which then migrate. This cycle of posting, notification and subsequent migration continues indefinitely.
Mobile code PN01
Class name mct.examples.messaging.PostNetlet
URL MF01[PUBLIC]@mct.admin.RemoteMigrationFacilitator
Authority PUBLIC

After you finish running the entire demo, hopefully you will understand some of what the package does. Now the challenge is yours to implement mobile code applications that suit your needs. Constructing a mobile agent provides more information of how your own mobile agent might be constructed using the toolkit.
