| Authors: | Yvo Gärber and Draegerwerk AG & Co. KGaA
|
|---|---|
| Date: | 8 Jul 2009
|
| Brief Description: |

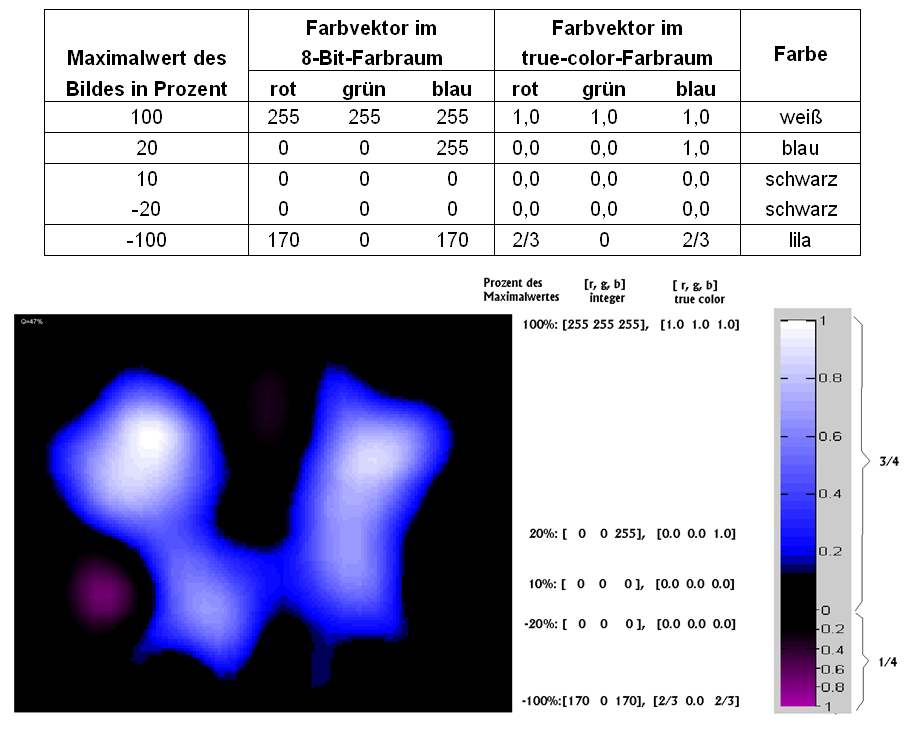

This is the colourmap developed by Draegerwerk AG & Co. KGaA
for display of EIT ventilation images.
|
| License: | This colour mapping information is in the Public Domain
|
| Data: |
Colour map (with columns of Red/Green/Blue values), is available
here (Matlab v7 format).
In EIDORS, this colourmap may be accessed by setting:
calc_colours('cmap_type','draeger');
This matrix may be recreated as follows:
p1= 2/3*linspace(1,0,26)'*[1,0,1]; p2= zeros(9,3); p3= linspace(0,1,4)'*[0,0,1]; p4= linspace(0,1,26)'*[1,1,0]; p4(:,3)= 1; p4(1,:)= []; cMap = [p1;p2;p3;p4]; |
