JavaBeans
We will again use excellent articles from JavaWorld to introduce JavaBeans.
We will look at the first part, while the second part is left for the students
as an excercise.
-
Building
a bevy of beans 1
-
Building
a bevy of beans 2
The following link gets yoou to a description of Java Reflection. It is
used heavily for beans introspection. It can be used whenever you need
to discover a behavior of a class, which was not known at the compilation
time.
Exterprise JavaBeans
The following link points to a good introduction to Enterprise JavaBeans
published in the online version of Java Report:
An application that wants to use JavaBeans needs a support from naming
services to locate interfaces that allow for bean creation and location
on distributed servers. The following is another article from Java Report
describing JNDI:
Exterprise JavaBeans Specifications (excerpts)
The following is a part of specifications for Enterprise JavaBeans from
Sun.
Goals
Overall goals for the Enterprise JavaBeans (EJB) architecture:
-
Enterprise JavaBeans will be the standard component architecture for building
distributed object-oriented business applications in Java. Enterprise JavaBeans
will make it possible to build distributed applications by combining components
developed using tools from different vendors.
-
Enterprise JavaBeans will make it easy to write applications: Application
developers will not have to understand low-level transaction and state
management details; multi-threading; resource pooling; and other complex
low-level APIs. However, an expert-level programmer will be allowed to
gain direct access to the low-level APIs.
-
Enterprise JavaBeans applications will follow the “write-once, run anywhere”
philosophy of Java. An enterprise bean can be developed once, and then
deployed on multiple platforms without recompilation or source code modification.
-
The Enterprise JavaBeans architecture will address the development, deployment,
and runtime aspects of an enterprise application’s life cycle.
-
The Enterprise JavaBeans architecture will define the contracts that enable
tools from multiple vendors to develop and deploy components that can interoperate
at runtime.
-
The Enterprise JavaBeans architecture will be compatible with existing
server platforms. Vendors will be able to extend their existing products
to support Enterprise JavaBeans.
-
The Enterprise JavaBeans architecture will be compatible with other Java
APIs.
-
The Enterprise JavaBeans architecture will provide interoperability between
enterprise beans and non-Java applications.
-
The Enterprise JavaBeans architecture will be compatible with CORBA.
Goals for Release 1.0
Focus on the following aspects:
-
Define the distinct “roles” that are assumed by the component architecture.
-
Define the client’s view of enterprise beans.
-
Define the enterprise bean developer’s view.
-
Define the responsibilities of an EJB container provider and server provider;
together these make up a system that supports the deployment and execution
of enterprise beans.
-
Define the format of the ejb-jar file, EJB’s unit of deployment.
Session and entity objects
Enterprise JavaBeans 1.0 defines two types of enterprise beans:
-
A session object type.
-
An entity object type.
The support for session objects is mandatory for an EJB 1.0 compliant container.
The
support for entity objects is optional for an EJB 1.0 compliant container,
but it will be-come
mandatory for EJB 2.0 compliant containers.
Session objects
A typical session object has the following characteristics:
-
Executes on behalf of a single client.
-
Can be transaction-aware.
-
Updates shared data in an underlying database.
-
Does not represent directly shared data in the database, although it may
access and update such data.
-
Relatively short-lived.
-
Is removed when the EJB server crashes. The client has to re-establish
a new session object to continue computation.
A typical EJB server and container provide a scalable runtime environment
to execute a large number of session objects concurrently.
Entity objects
A typical entity object has the following characteristics:
-
Represents data in the database.
-
Transactional.
-
Shared access from multiple users.
-
Can be long-lived (lives as long as the data in the database).
-
Survives crashes of the EJB server. A crash is transparent to the client.
A typical EJB server and container provide a scalable runtime environment
for a large number of concurrently active entity objects.

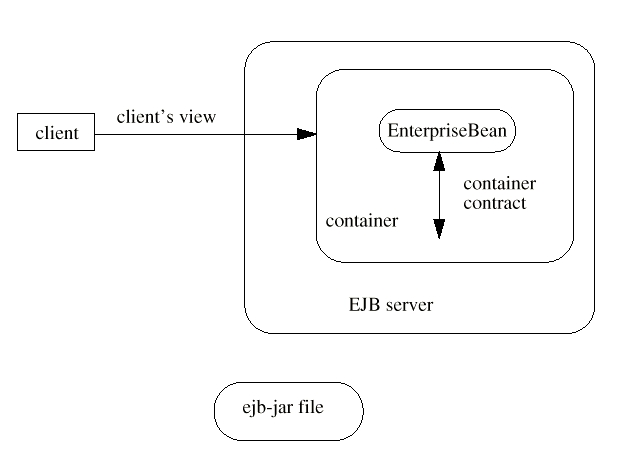

Roles and scenarios
Roles
The Enterprise JavaBeans architecture defines six distinct roles in the
application de-velopment and deployment workflow. Each role may be performed
by a different party. Enterprise JavaBeans specifies the contracts that
ensure that the product of each role is compatible with the product of
the other roles. In some scenarios, a single party may perform several
roles. For example, the container provider and the EJB server provider
may be the same vendor. Or a single programmer may perform the role of
the enterprise bean provider and the role of the application assembler.
Enterprise bean provider
An enterprise bean provider is typically an application domain
expert. An enterprise bean provider develops reusable components called
enterprise beans. An enterprise bean implements a business task, or a business
entity.
An enterprise bean provider is not an expert at system-level programming.
Therefore, an enterprise bean provider usually does not program transactions,
concurrency, secu-rity, distribution and other services into the enterprise
beans. An enterprise bean pro-vider relies on an EJB container provider
for these services.
The output of an enterprise bean provider is an ejb-jar file that contains
enterprise beans. Each bean includes its Java classes, its remote and home
interfaces, its deploy-ment descriptor, and its environment properties.
The enterprise beans must conform to the Enterprise JavaBeans component
contract to ensure that they can be installed into any compliant EJB container.
Application assembler
An application assembler is a domain expert who composes applications
that use enter-prise beans. The application assembler works with the enterprise
bean’s client view contract. Although the assembler must be familiar with
the functionality provided by the enterprise beans’ remote and home interfaces,
he or she does not have to have any knowledge of the enterprise beans’
implementation.
The output of the application assembler can be new enterprise beans,
or applications that are not enterprise beans (for example, servlets, applets,
or scripts). The assembler may also write a GUI for the applications.
The application assembly can be done before or after the deployment
of the enterprise beans into an operational environment.
Deployer
A deployer is an expert at a specific operational environment,
and is responsible for the deployment of enterprise beans and their containers.
A deployer typically uses tools provided by the container provider to adapt
enterprise beans to a specific operational environment.
For example, a deployer is responsible for mapping the security roles
assumed by the enterprise beans to those required by the organization that
will be using the enterprise beans. A deployer typically reads the attribute
settings in the enterprise beans’ deploy-ment descriptors and modifies
the values of the enterprise beans’ environment proper-ties. In some cases,
a qualified deployer may customize the business logic of the enterprise
beans at their deployment. Such a deployer would typically use the container
tools to write relatively simple application code that wraps the enterprise
bean’s business methods.
EJB server provider
An EJB server provider is a specialist in the area of distributed
transaction manage-ment, distributed objects, and other lower-level system-level
services. A typical EJB server provider is an OS vendor, middleware vendor,
or database vendor. Typically, the EJB server provider will provide a container
that implements the EJB session container[4.2.2] contract, and may also
provide an entity container[4.2.2] for one or more data sources supported
on the EJB server. An EJB server provider will typically publish its lower-level
interfaces to allow third parties to develop containers. These interfaces
are not currently specified by Enterprise JavaBeans and are vendor specific.
A later release of Enterprise JavaBeans may standardize the interfaces
between a container and an EJB server.
EJB container provider
The expertise of a container provider is system-level programming,
possibly combined with some application-domain expertise. The focus of
a container provider is on the de-velopment of a scalable, secure, transaction-enabled
container system. The container provider insulates the enterprise bean
from the specifics of an underlying EJB server by providing a simple, standard
API between the enterprise bean and the container (this API is the Enterprise
JavaBeans component contract). For enterprise entity beans with container-managed
persistence, the entity container is responsible for persistence of the
entity beans installed in the container. The container provider’s tools
are used to generate code that moves data between the enterprise bean’s
instance variables, and a database or an existing application. The container
provider may be an expert in the area of providing access to enterprise’s
existing data sources or application systems (such as CICS or SAP). A container
provider is responsible for providing support for versioning of enterprise
beans. For example, the container provider should allow enterprise bean
classes to be upgraded without invalidating existing clients or losing
existing enterprise bean ob-jects.
The container provider typically provides tools that allow the system
administrator to monitor and manage the container and the beans running
in the container at runtime. Enterprise JavaBeans defines the component
contract that must be supported by every compliant EJB container. Enterprise
JavaBeans allows container vendors to develop specialized containers that
extend this contract. Examples of specialized containers in-clude a container
that supports an application-domain specific framework, a container that
bridges the EJB environment with an existing application system (such a
container allows modeling of the existing applications as enterprise beans),
a container that im-plements an Object/Relational mapping, or container
that is built on top of an object-oriented database system.
System administrator
The role of a system administrator is to oversee the well-being
of a running system. The system administrator typically uses runtime monitoring
and management tools provid-ed by the EJB server and container providers
to accomplish this task.
Scenario 1: Development, deployment, assembly
Wombat Inc. is an enterprise bean provider that specializes in the development
of soft-ware components for the banking sector. Wombat Inc. has developed
the AccountBean and TellerBean enterprise beans, and packages them in an
ejb-jar file.
Wombat sells the enterprise beans to banks that may use containers and
EJB servers from multiple vendors. One of the banks uses a container from
the Acme Corporation. Acme’s tools that are part of Acme’s container product
facilitate the deployment of en-terprise beans from any provider, including
Wombat Inc. The deployment process re-sults in generating additional classes
used internally by the Acme container. The additional classes allow the
Acme container to manage enterprise bean objects at runt-ime, as defined
by the EJB component contract.
Since the AccountBean and TellerBean enterprise beans by themselves
are not a com-plete application, the bank MIS department may use Acme’s
tools to assemble the Ac-countBean and TellerBean enterprise beans with
other enterprise beans (possibly from another vendor) and possibly with
some non-EJB existing software, into a complete ap-plication. The MIS department
takes on both the EJB deployer and application assem-bler roles.
Fundamentals
This chapter defines the scope of the Enterprise JavaBeans specification.
Enterprise beans as components
Enterprise JavaBeans is an architecture for component based distributed
computing. Enterprise beans are components of distributed transaction-oriented
enterprise applica-tions.
Component characteristics
The essential characteristics of an enterprise bean are:
-
An enterprise bean is contained and managed at runtime by a container.
-
An enterprise bean can be customized at deployment time by editing its
environment properties.
-
Various metadata, such as a transaction mode and security attributes, are
separated out from the enterprise bean class. This allows the metadata
to be manipulated using container’s tools at design and deployment time.
-
Client access is mediated by the container and the EJB server on which
the enterprise bean is deployed.
-
If an enterprise bean uses only the standard container services defined
by the EJB specification, the enterprise bean can be deployed in any compliant
EJB container.
-
Specialized containers can provide additional services beyond those defined
by the EJB specification. An enterprise bean that depends on such a service
can be deployed only in a container that supports the service.
-
An enterprise bean can be included in a composite application without requiring
source code changes or recompilation of the enterprise bean.
-
A client’s view of an enterprise bean is defined by the bean developer.
Its view is unaffected by the container and server the bean is deployed
in. This ensures that both beans and their 100% Pure Java TM clients are
write-once-run-anywhere.
Flexible component model
The enterprise bean architecture is flexible enough to implement components
such as the following:
-
An object that represents a stateless service.
-
An object that represents a conversational session with a particular client.
Such session objects automatically maintain their conversational state
across multiple client-invoked methods.
-
A persistent entity object that is shared among multiple clients.
Although the state management protocol defined by the Enterprise JavaBeans
architec-ture is simple, it provides an enterprise bean developer great
flexibility in managing a bean’s state.
A client always uses the same API for object creation, lookup, method
invocation, and destruction, regardless of how an enterprise bean is implemented,
and what function it provides to the client.
Enterprise JavaBeans contracts
This section describes the Enterprise JavaBeans Release 1.0 contracts.
Client’s view contract
This is a contract between a client and a container. The client’s view
contract provides a uniform development model for applications using enterprise
beans as components. This uniform model enables using higher level development
tools, and will allow great-er reuse of components.
Both the enterprise bean provider and the container provider have obligations
to fulfill the contract. This contract includes:
-
Object identity.
-
Method invocation.
-
Home interface.
A client expects that an enterprise bean object has a unique identifier.
The container provider is responsible for generating a unique identifier
for each EJB object. For entity enterprise beans (See Subsection 4.3.2),
the EJB provider is responsible for supplying a unique primary key that
the container embeds into the EJB object’s identifier. A client locates
an enterprise bean container through the standard Java Naming and Di-rectory
Interface TM (JNDI). Within a container, the primary key is used to identify
each EJB object.
An enterprise bean and its container cooperate to implement the create,
find, and re-move operations callable by clients.
An enterprise bean provider defines a remote interface that defines
the business meth-ods callable by a client. The enterprise bean provider
is also responsible for writing the implementation of the business methods
in the enterprise bean class. The container is responsible for allowing
the clients to invoke an enterprise bean through its associated remote
interface. The container delegates the invocation of a business method
to its im-plementation in the enterprise bean class.
An enterprise bean provider is responsible for supplying an enterprise
bean’s home in-terface. The enterprise bean’s home interface extends the
javax.ejb.EJBHome inter-face. A home interface defines zero or more create(...)
methods, one for each way to create an EJB object. A home interface for
entity beans defines zero or more finder methods, one for each way to lookup
an EJB object, or a collection of EJB objects of a particular type.
The enterprise bean provider is responsible for the implementation of
the ejbCreate(...) methods in the enterprise bean class, whose signature
must match those of the cre-ate(...) methods defined in the bean’s home
interface. The container is responsible for delegating a client-invoked
create(...) method to the matching ejbCreate(...) method on an enterprise
bean instance.
The enterprise entity bean provider is responsible for the implementation
of the ejbFindMETHOD(...) methods in the enterprise bean class, whose signature
must match those of the findMETHOD(...) finder methods defined in the bean’s
home inter-face. The container is responsible for delegating a client-invoked
findMETHOD(...) method to the matching ejbFindMETHOD(...) method on an
enterprise bean instance.
Component contract
This is a contract between an enterprise bean and its container. This contract
includes:
-
An enterprise bean class instance’s view of its life cycle. For a session
enterprise bean, this includes the state management callbacks defined by
the javax.ejb.SessionBean and javax.ejb.SessionSynchronization interfaces.
For an entity enterprise bean, this includes the state management callbacks
defined by the javax.ejb.EntityBean interface. The container invokes the
callback methods defined by these interfaces at the appropriate times to
notify the instance of the
important events in its life cycle.
-
The javax.ejb.SessionContext interface that a container passes to a session
enterprise bean instance at instance creation. The instance uses the SessionContext
interface to obtain various information and services from its container.
Similarly, an entity instance uses the javax.ejb.EntityContext interface
to communicate with its container.
-
The environment java.util.Properties that a container makes available to
an enterprise bean.
-
A list of services that every container must provide for its enterprise
beans.
Ejb-jar file
An ejb-jar file is a standard format used by EJB tools for packaging enterprise
beans with their declarative deployment information. All EJB tools must
support ejb-jar files.
The ejb-jar contract includes:
-
JAR file manifest entries that describe the contents of the ejb-jar file.
-
Java class files for the enterprise beans.
-
Enterprise beans’ deployment descriptors. A deployment descriptor includes
the declarative attributes associated with an enterprise bean. The attributes
instruct the container how to manage the enterprise bean objects.
-
Enterprise beans’ environment properties that the enterprise bean requires
at runtime.
The following figure illustrates the Enterprise JavaBeans contracts that
are defined in Release 1.0.
Note that while the figure illustrates only a remote client running
outside of the contain-er, the client-side API is also applicable to clients
who themselves are enterprise beans installed in an EJB container.
